| Softail Frames |
| We specialize in manufacturing frames to spec. for other shops, bike builders, and manufacturers. And, we can do the same for you. So, why settle for the same generic, off-the-shelf frame everyone else can get from catalogs? Most frame builders won't even let you vary the rake, let alone take your completely new design from concept to steel... |

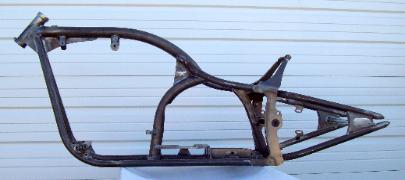

Softail Frames:
These Softail frames - that we do for an exotic motorcycle
manufacturer - are also available directly from us, but
should be considered as only an example of what we can do
for you.
Here's the details on this one:
- 40 Degree Rake, 300 Tire Drop Seat Softail Chopper Frame
- Handbuilt on our state-of-the-art rotisserie frame jig.
- 100% TIG welded - fixture-cooled and welded only 3/8" at a
spot for minimum stress in the material!
- 43 degree effective rake (40 degree rake in frame with
recommended 3 degree triple trees- trees not included).
- Neck height is 29.375" from the elevation of bottom of
frame rails to bottom of point of neck - 38" forks
recommended.
- Fits up to a 300mm rear tire and includes the 1" axle and
axle cover plates.
- Massive 2" diameter backbone doubles as the oil-tank and
provides an extremely rigid chassis for the driveline
components. Large surface area of oil circulating system
helps cool engine oil as is circulates from the top to the
bottom of the frame.
- Drop-Seat (21.5" Seat height at 4.25" ground clearance)
- Softail style with heavy-duty upright adjustable dampening
mono-shock suspension (Coil-over nitrogen-charged
Progressive brand shock shown is included) has 3.5" of
travel at the axle.
- Designed for large displacement Big-Twin style engines.
- No oil tank needed. Oil stores inside frame and flows
through backbone and downtubes. Return and vent oil lines
are hidden inside the downtubes for extremely clean overall
bike build!
- Features hidden axle blocks for 1" rear axle. Chrome pivot
tube is included.
- Frame includes all motor and trans mounts, seat support
and mounts, forward control mounts, passenger peg
mounts, belt guard mounts, right-side rear brake mounts,
and external fork neck stops. Swingarm is pre-drilled and
slotted for internal wiring and brake lines.
- Planning a top-dollar, no-expense-spaired, King-Jack S--t
exotic build?!? No better place to start this frame and
swingarm chassis combo!
- MSRP on this frame, swingarm and shock combo: $4,500.00
These Softail frames - that we do for an exotic motorcycle
manufacturer - are also available directly from us, but
should be considered as only an example of what we can do
for you.
Here's the details on this one:
- 40 Degree Rake, 300 Tire Drop Seat Softail Chopper Frame
- Handbuilt on our state-of-the-art rotisserie frame jig.
- 100% TIG welded - fixture-cooled and welded only 3/8" at a
spot for minimum stress in the material!
- 43 degree effective rake (40 degree rake in frame with
recommended 3 degree triple trees- trees not included).
- Neck height is 29.375" from the elevation of bottom of
frame rails to bottom of point of neck - 38" forks
recommended.
- Fits up to a 300mm rear tire and includes the 1" axle and
axle cover plates.
- Massive 2" diameter backbone doubles as the oil-tank and
provides an extremely rigid chassis for the driveline
components. Large surface area of oil circulating system
helps cool engine oil as is circulates from the top to the
bottom of the frame.
- Drop-Seat (21.5" Seat height at 4.25" ground clearance)
- Softail style with heavy-duty upright adjustable dampening
mono-shock suspension (Coil-over nitrogen-charged
Progressive brand shock shown is included) has 3.5" of
travel at the axle.
- Designed for large displacement Big-Twin style engines.
- No oil tank needed. Oil stores inside frame and flows
through backbone and downtubes. Return and vent oil lines
are hidden inside the downtubes for extremely clean overall
bike build!
- Features hidden axle blocks for 1" rear axle. Chrome pivot
tube is included.
- Frame includes all motor and trans mounts, seat support
and mounts, forward control mounts, passenger peg
mounts, belt guard mounts, right-side rear brake mounts,
and external fork neck stops. Swingarm is pre-drilled and
slotted for internal wiring and brake lines.
- Planning a top-dollar, no-expense-spaired, King-Jack S--t
exotic build?!? No better place to start this frame and
swingarm chassis combo!
- MSRP on this frame, swingarm and shock combo: $4,500.00
NEW!
Drop Neck/Pro Street Version!!!
Drop Neck/Pro Street Version!!!
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| We are a licensed motorcycle manufacturer in the state of Iowa. All frames come with an MSO cert. and a stamped serial number. |

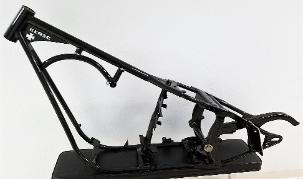

USA Made! 12" Stretch Softail Motorcycle
Frame @ Evo/Shovel/Panhead Style Motors
Frame @ Evo/Shovel/Panhead Style Motors
- Handbuilt on our frame jig in-house by BEOSC. Majority
TIG welded - Fixture-cooled and welded only 3/8" at a spot for
minimum stress in the material! - 39 degree rake (when used with springer forks w/2"
stretched rockers trail is corrected to 5.25"). - Fits up to a 200mm rear tire.
- Massive 1.75" diameter backbone for long-term
durability. - Softail style so you get back some ride comfort with looks
of the 60's!! - Designed for large displacement Big-Twin style engines
or shovels or panheads - all have same bolt patterns. - Frame includes all motor and trans mounts, forward
control mounts, passenger peg mount holes. - Planning a top-dollar, no-expense-spaired, King-Jack S--t
exotic build?!? No better place to start this frame and
swingarm chassis combo! - PLEASE NOTE: we can also do this frame as a conversion
(rake/stretch job) to your existing stock Softail frame, so,
that you can keep your numbers!!
