Complete Frame Manufacturer's Start-up Kit:
Kit Includes:
- Complete frame jig as shown.
- Start-up components kit as shown for your first build including
neck, axle blocks, motor/trans mounts and much, much more.
- Chopper Builder's Handbook CD-ROM.
- Jig allows you to build Rigid or Softail frames with Sportster or Big
Twin width bottom rails and single or dual downtubes!
- This kit allows you to start manufacturing you own motorcycle
frames practically overnight.
Note: Please allow 4 to 8 weeks build time after order is placed.
$3629.00
Kit Includes:
- Complete frame jig as shown.
- Start-up components kit as shown for your first build including
neck, axle blocks, motor/trans mounts and much, much more.
- Chopper Builder's Handbook CD-ROM.
- Jig allows you to build Rigid or Softail frames with Sportster or Big
Twin width bottom rails and single or dual downtubes!
- This kit allows you to start manufacturing you own motorcycle
frames practically overnight.
Note: Please allow 4 to 8 weeks build time after order is placed.
$3629.00

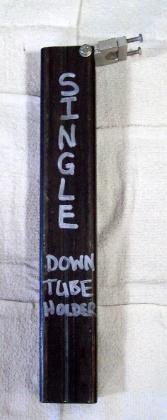

Single Downtube Holder:
- Designed to work with style of jig shown above.
- Allows you to align and secure single downtubes with other
components of frame.
$150.00
- Designed to work with style of jig shown above.
- Allows you to align and secure single downtubes with other
components of frame.
$150.00

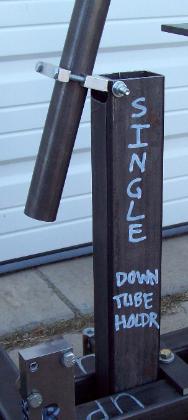

| Product shown installed in jig with tubing being clamped in place. |

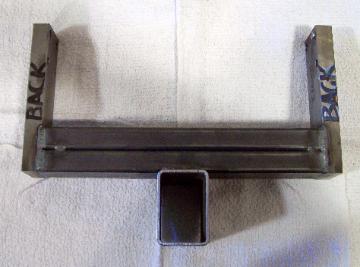

Forward Control Fixture:
- Designed for use with style of jig shown at top of page.
- Allows you to secure forward control bosses in proper locaton on
frame square and level.
- Made to house common Big Twin style forward control bosses.
$125.00
- Designed for use with style of jig shown at top of page.
- Allows you to secure forward control bosses in proper locaton on
frame square and level.
- Made to house common Big Twin style forward control bosses.
$125.00
| Product shown installed in jig with bosses in place. |

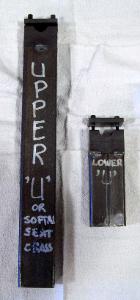

- Designed for use with style of jig at top of page.
- Allows you to locate and clamp upper and lower "U" shaped loops
that surround rear tire.
- Clamps are made to fit 1.25" O.D. tubing.
$150.00/Set
- Allows you to locate and clamp upper and lower "U" shaped loops
that surround rear tire.
- Clamps are made to fit 1.25" O.D. tubing.
$150.00/Set

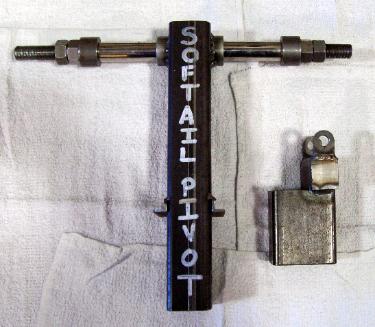

Softail Upright Holder and Shock Mount Set:
- Designed for use with style of jig at top of page.
- Allows you to locate and hold both left and right frame uprights as
well as front shock mount on Softail frames.
$150.00/Set
- Designed for use with style of jig at top of page.
- Allows you to locate and hold both left and right frame uprights as
well as front shock mount on Softail frames.
$150.00/Set
| Product shown installed in jig with frame uprights in place. |

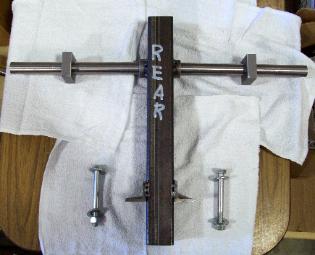

- Designed for use withe style of jig at top of page.
- Locates and holds axle plates square and level and perpendicular
to frame jig base.
- Includes axle surface plates and hardware.
$150.00
- Locates and holds axle plates square and level and perpendicular
to frame jig base.
- Includes axle surface plates and hardware.
$150.00
| Product shown installed in jig with axle plate in place. |

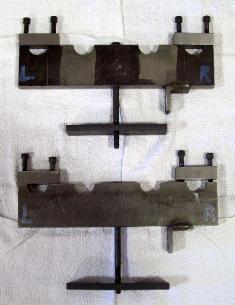

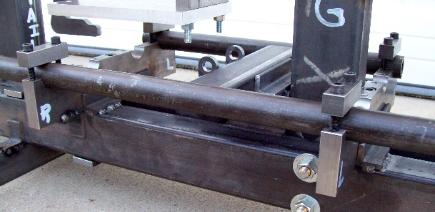

Frame Rail Saddles Set:
- Designed for use with style of jig at top of page.
- Holds lower frames rails securely in proper position.
- Feature Sportster and Big Twin centers.
$299.00/Pair
- Designed for use with style of jig at top of page.
- Holds lower frames rails securely in proper position.
- Feature Sportster and Big Twin centers.
$299.00/Pair
 | |  |
