Smooth Neck Cup Kit with Internal Fork Stop System
$132/Kit
$132/Kit
|
|
|
|
|
| Frame Builder's Parts |
| Replica Mtr Mnt Includes Forward Control Bosses Built in |

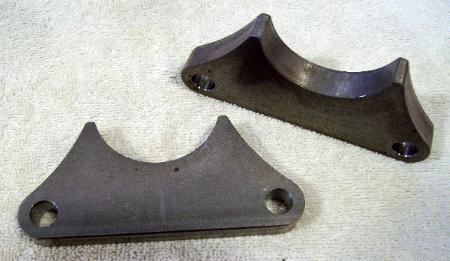

Replica Rear
Mtr./Front
Trans Mount
Mtr./Front
Trans Mount
| Tapered Version Shown |
| Fork Stop Plate |
| Quick Search |
- DOM Neck Steel:
- 2.0"x 0.344" wall (1.313"id) x 5.625" $27.00
- ADD Cups, Races, & Bearings $60.00
- ADD all above + Dust Shields $72.00
- ADD Internal Fork Stop Cup Kit $132.00
- 2.0"x 0.344" wall (1.313"id) x 5.625" $27.00
- ADD Cups, Races, & Bearings $60.00
- ADD all above + Dust Shields $72.00
- ADD Internal Fork Stop Cup Kit $132.00
- Rear Axle Adjuster Slugs: Std. = 3/4"x 7/8" drilled & tapped for
3/8"-16 (Any size and threading available on request - slight extra
charge) $10.00/Pair
- Include Chrome Adj. Bolts, Nuts & 2 Slugs:
$28.00/Kit
- Include above + Adjuster Collars (3/4" axle size only):
$35.00/Kit
3/8"-16 (Any size and threading available on request - slight extra
charge) $10.00/Pair
- Include Chrome Adj. Bolts, Nuts & 2 Slugs:
$28.00/Kit
- Include above + Adjuster Collars (3/4" axle size only):
$35.00/Kit
- Billet Steel Tapered Steering Necks: Will accept races & bearings
without separate cups $135/each
- Billet Steel Straight Steering Necks: $80/each
- Add Internal Fork Stop Tabs to Neck: $15
- Add races, bearings, & dust shields $60
-Add Female Internal Fork Stop Plate & Pins $56
without separate cups $135/each
- Billet Steel Straight Steering Necks: $80/each
- Add Internal Fork Stop Tabs to Neck: $15
- Add races, bearings, & dust shields $60
-Add Female Internal Fork Stop Plate & Pins $56
- Motor Mount Set: Front mount is 1" square bar, back mount is CNC
Laser Cut 1/2" plate - both with bolt holes and pre-fit Big Twin Style
forward control bosses. $93/Set
- Upgrade to authentic replica front mount Add
$139/Set - Upgrade to replica rear mtr/front trans mnt Add
$179/Set
- Include Chrome Mtr. Mount Bolts: Add $46/Kit
Laser Cut 1/2" plate - both with bolt holes and pre-fit Big Twin Style
forward control bosses. $93/Set
- Upgrade to authentic replica front mount Add
$139/Set - Upgrade to replica rear mtr/front trans mnt Add
$179/Set
- Include Chrome Mtr. Mount Bolts: Add $46/Kit
Front Motor Mount w/ Pre-fit Forward Control Bosses:
- Front motor mount bar with forward control bosses already
installed! Saves fixture-ing and set-up time!
- Add a rear motor mount for 1-1/4" backbone for $25.
$68.00/Each
- Front motor mount bar with forward control bosses already
installed! Saves fixture-ing and set-up time!
- Add a rear motor mount for 1-1/4" backbone for $25.
$68.00/Each
| Straight Version Shown |
Smooth Billet Steel Necks:
- 2" O.D. Body.
- Made to fit Big Twin Style Races and Bearings.
- Smooth Sleek Design.
- Available with 1-1/8" or 1-1/2" Through Hole.
- Add Races, Bearings and Dust Shields for $60.
- Add and external fork stop for $5 more and have us weld if on
for $30 if you wish.
$100.00 Each
- 2" O.D. Body.
- Made to fit Big Twin Style Races and Bearings.
- Smooth Sleek Design.
- Available with 1-1/8" or 1-1/2" Through Hole.
- Add Races, Bearings and Dust Shields for $60.
- Add and external fork stop for $5 more and have us weld if on
for $30 if you wish.
$100.00 Each
| 1-1/2" Through Hole |
| 1-1/8" Through Hole |
| Fork Stop |
| Fork Stop Installed |
| Rear mount in kit is for 1-1/4" backbone. |
$93/Set
Cast Big Twin Front Motor Mount w/ Forward Control Bosses:
- Cast steel construction.
- Big Twin hole spacing.
- Features integrated Big Twin forward control bosses.
- Features 1-3/8" notches on the underneath side for easy and
strong mounting. Could also be adapted to1-1/4" downtubes.
(Notches are approx. 9" between centers and are angled to match
downtubes.)
$68.00/Each
- Cast steel construction.
- Big Twin hole spacing.
- Features integrated Big Twin forward control bosses.
- Features 1-3/8" notches on the underneath side for easy and
strong mounting. Could also be adapted to1-1/4" downtubes.
(Notches are approx. 9" between centers and are angled to match
downtubes.)
$68.00/Each
| Rear View |
| Top Front View |
| Underneath View |
