|Frame Jig Parts, Accessories, and Complete Jigs

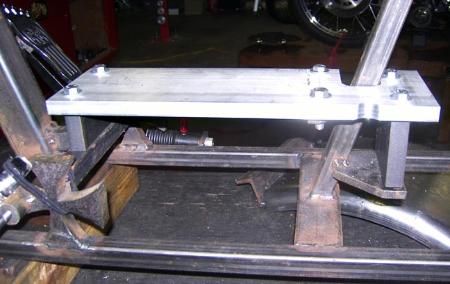

|Pro Plate - For Exact Motor and Front Tranny Mount Alignment!!!
- Get Exact Motor and Tranny Mount Placement the First Time, Every Time,
Just like the Pro's!!!
- Rigid Construction of 5/8" 6061 Aluminum and 3/4" Steel Plate to Resist Weld
Draw Under the Most Extreme Conditions.
- All Construction from Precision-Machined parts for Guaranteed exact
- Available in 4-speed or 5/6-speed Tranny Mount versions, or get both
versions for just $30 extra - just select when ordering.
- Features relieved area for 2"x3" Jig King Post.
- Save Hundreds! No need to Purchase Dummy Engine, Tranny, and
- Use it as Post-Build Quality Check.
- Includes Hardware.
- JIg Neck Holder Cones: Machined from billet 1018 steel, 2"x 1.67" bored
for 1.0" rod
Tubing Clamps for Jig Fixtures:
Bolt, weld, or clamp them to your jig anywhere you want to hold tubing -
precision machined from 1/2" thick billet bar stock to exact tubing size -
drilled & tapped & include 1/4-20 bolts - please specify 1", 1-1/4" or 1-1/2"
tubing size $25/each
Axle Plate/Block Surface Plates:
Slide them onto your 3/4" or 1" axle rod, tighten the set screw, and create a
rigid, square surface to clamp axle plates or blocks. Machined from
3/4"x2.5" billet steel bar. $49/Pair
From This to This
Chopper Builders Handbook
Volume 1: Chassis Work
- A must have for aspiring
- Includes 200 photos, 80
Diagrams and 30 Plan Sheets.
1936-'57 Big Twin Rigid Trans Mount Location Fixture:
- Fixture accurately locates the 4 mount bolts and correctly positions the

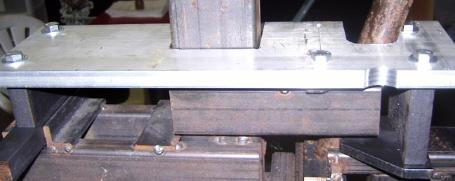

|This picture and the one
to the right show this
product integrated into
a complete frame jig.
Rapid Start Jig Builders' Kit:
- Build a jig in a day! Just supply the tubing!
- Includes a Pro Plate 4M w/Jig Relief, Steering Neck Fixture, Four 1-1/4"
Tubing Clamps, Set of Axle Surface Plates and The Chopper Builder's
Handbook CD-Rom (Tons of Frame, Fork and Jig Plans).
- Base Kit Savings of $30.00 vs. separate purchases
- Add a Billet Frame Kit for $300 ($350 Reg. Price) $50 Savings.
- Puchase Jig Kit, Billet Frame Kit & any Motor on the site together &
knock another $250 off your order! (Click here to find Motor Specs)
That's a total savings of $330!!!
$529 - up
|Billet Frame Kit Includes: Tapered billet
neck w/stop tabs + set of hidden axle
blocks + motor & tranny mount kits +
factory-style forward control mounts
