| Springer Parts & Kits |
| Strap on a pair!!! Build ya' own springer!!! |
| Whether you've got a set of plans or you're just copying the old 60's-era set you got from your hippy neighbor, this stuff will speed up your build x 12!!!! |

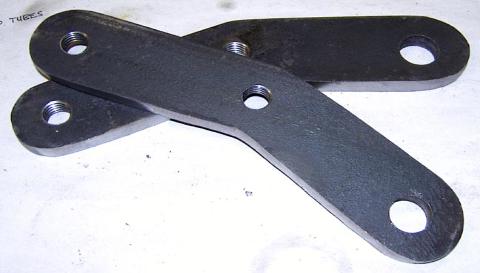

Rockers:
CNC Lazer Cut springer rockers - Pre-cut holes for either 5/8" or
3/4" axle (please specify when ordering). Holes are 3-1/16" on
center. Material is 3/8" thick A36 structural steel .
$50/Set
Narrow (6" or 8" Wide) Springer Trees Kits
Includes:
- Narrow Spring Clamp:
Holds spring assembly to rigid forks. Designed for use on 6"
(shown) or 8" wide springers w/1-1/4" spring rod bushings and
1-1/4" rigid fork tubes. Other size holes available - please
specify when ordering. CNC plasma-cut from 1/2" thick A36
structural steel
$45/Separately
Narrow Spring Fork Bridge:
Pre-drilled and tapped to accept our standard spring rods (3/8"
fine thread) and 3/4" spring fork tubes (larger or smaller holes
available). Material is 3/4" thick steel.
$35/Separately
Top & Bottom Rigid Fork Trees:
Old School Eared Top Tree Option Shown
$100/Separately
Plain Steel Top Tree Option for use with modern style risers
$50/Separately
Bottom Tree:
(3/4" thick) is drilled for 1-1/4" tubing and pre-drilled and
tapped for 1"-24 threaded fork stems (H-D standard) and 1/4"-20
set screw.
$45/Separately
Trees (Only) Kit w/Plain Top Tree $165/Kit
$10 Savings vs. purchasing separately
Trees (Only) Kit w/Chrome Eared Top Tree
$210/Kit
$15 Savings vs. purchasing separately
Narrow (6" or 8" Wide) Springer Fork Kit:
We did all the hard work gathering the parts and cutting
and machining the heavy plate for you. You get to brag
that you built your own springer. Designed with you
frame builders in mind - uses your left-over 1-1/4" DOM
or Chrom-Moly tubing. The 6" wide (outside of tubing
dimension) kit is for 3" wide front tires only and our
mini-brake wheel. The 8" wide kit is for "narrow glide"
hubs and disc brakes. Both require separate purchase
of tubing, rod, and common hardware (readily
available from your local steel supplier and hardware
store) - parts list included.
Kit includes:
- Top Tree for Bolt-in Risers
- Chrome Fork Spring Set
- Polished Brass Spring Rod Stabilizer
- Spring Rod and Bushing Kit
- Rockers
- Spring Clamp
- Spring Fork Bridge/Tree
- Lower Tree
- Stainless Steering Neck Stem & Chrome Top Nut
- Spring Aligners for Lower Outer Springs
- Slugs for Rigid Fork Tubes/Trees & Rocker Bosses
- 19 Pg. Photo-Illustrated Step-by-Step Instruction Book
- $100+ savings vs. buying parts separately
$399/Kit
Kit Upgrade Options:
Exchange plain steel top trees for Chrome Top
Trees w/Ears for Flanders style Dog Bone Risers
$450/Kit
Add Chrome Flanders Dog Bones to Top Trees
w/Ears kit
$500/Kit
CNC Lazer Cut springer rockers - Pre-cut holes for either 5/8" or
3/4" axle (please specify when ordering). Holes are 3-1/16" on
center. Material is 3/8" thick A36 structural steel .
$50/Set
Narrow (6" or 8" Wide) Springer Trees Kits
Includes:
- Narrow Spring Clamp:
Holds spring assembly to rigid forks. Designed for use on 6"
(shown) or 8" wide springers w/1-1/4" spring rod bushings and
1-1/4" rigid fork tubes. Other size holes available - please
specify when ordering. CNC plasma-cut from 1/2" thick A36
structural steel
$45/Separately
Narrow Spring Fork Bridge:
Pre-drilled and tapped to accept our standard spring rods (3/8"
fine thread) and 3/4" spring fork tubes (larger or smaller holes
available). Material is 3/4" thick steel.
$35/Separately
Top & Bottom Rigid Fork Trees:
Old School Eared Top Tree Option Shown
$100/Separately
Plain Steel Top Tree Option for use with modern style risers
$50/Separately
Bottom Tree:
(3/4" thick) is drilled for 1-1/4" tubing and pre-drilled and
tapped for 1"-24 threaded fork stems (H-D standard) and 1/4"-20
set screw.
$45/Separately
Trees (Only) Kit w/Plain Top Tree $165/Kit
$10 Savings vs. purchasing separately
Trees (Only) Kit w/Chrome Eared Top Tree
$210/Kit
$15 Savings vs. purchasing separately
Narrow (6" or 8" Wide) Springer Fork Kit:
We did all the hard work gathering the parts and cutting
and machining the heavy plate for you. You get to brag
that you built your own springer. Designed with you
frame builders in mind - uses your left-over 1-1/4" DOM
or Chrom-Moly tubing. The 6" wide (outside of tubing
dimension) kit is for 3" wide front tires only and our
mini-brake wheel. The 8" wide kit is for "narrow glide"
hubs and disc brakes. Both require separate purchase
of tubing, rod, and common hardware (readily
available from your local steel supplier and hardware
store) - parts list included.
Kit includes:
- Top Tree for Bolt-in Risers
- Chrome Fork Spring Set
- Polished Brass Spring Rod Stabilizer
- Spring Rod and Bushing Kit
- Rockers
- Spring Clamp
- Spring Fork Bridge/Tree
- Lower Tree
- Stainless Steering Neck Stem & Chrome Top Nut
- Spring Aligners for Lower Outer Springs
- Slugs for Rigid Fork Tubes/Trees & Rocker Bosses
- 19 Pg. Photo-Illustrated Step-by-Step Instruction Book
- $100+ savings vs. buying parts separately
$399/Kit
Kit Upgrade Options:
Exchange plain steel top trees for Chrome Top
Trees w/Ears for Flanders style Dog Bone Risers
$450/Kit
Add Chrome Flanders Dog Bones to Top Trees
w/Ears kit
$500/Kit
| Order below this picture |
Completed 6" kit shown with
Top Trees w/Ears Upgrade. Std.
kit comes with plain steel top
tree for use with modern risers.
Top Trees w/Ears Upgrade. Std.
kit comes with plain steel top
tree for use with modern risers.
Spring Compression Tool:
Makes springer assembly a million times easier
$49
Makes springer assembly a million times easier
$49
